分光辐射度计

一、产品概述

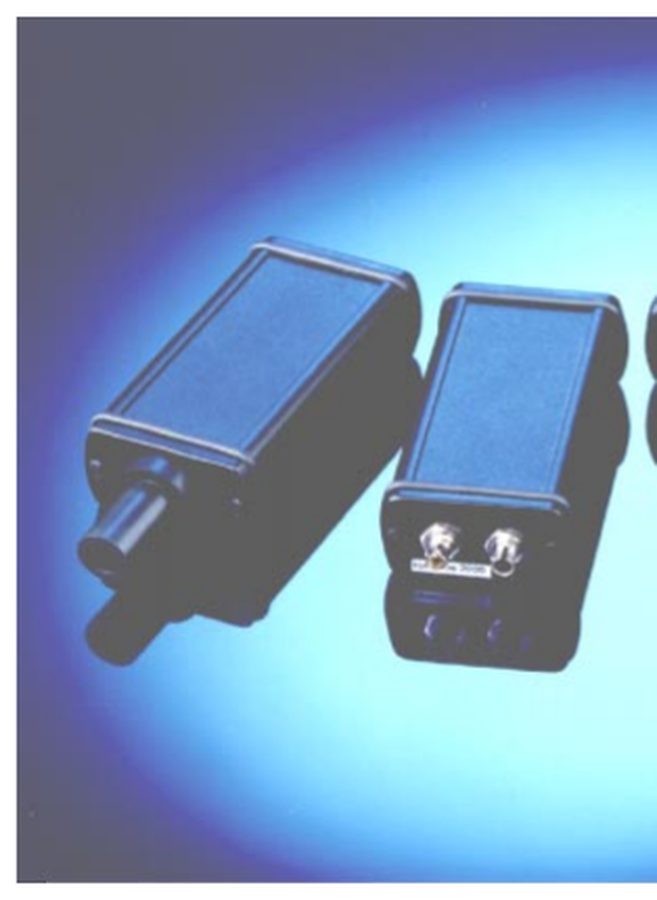

specbos 1301 是 JETI 出品的可见光分光辐射度计，在 specbos 1211 光谱辐射计基础上配置积分球，实现小尺寸光源光通量与辐射通量的快速定量测量。仪器采用高质量全息衍射光栅分光，杂散光低、动态范围高，配合积分球与配套软件即可完成辐射度与色度学全套参数测量，适用于质量检测与样品筛选。

二、核心特性

· 积分球测量：标配直径 50mm，可定制 100-500mm 球径与输入端口，带挡板避免首次反射
· 测量量丰富：辐射通量、光通量、光谱辐射通量、色度坐标（xy、u'v'）、主波长、色纯度、相关色温、显色指数
· USB 供电：无需额外电源，便携移动
· 自动确定测量时间，配 Excel 数据输出
· 全套辐射度与色度学软件功能

三、典型应用

LED 与小光源辐射通量/光通量测量、光源光谱辐射特性表征、灯具与显示器件光学评价、质量检测与样品筛选。

Product Overview
The specbos 1301 is a compact VIS spectroradiometer from JETI, combining the specbos 1211 spectroradiometer with an integrating sphere for fast radiant flux measurements of small light sources. A high-quality holographic diffraction grating ensures low stray light and high dynamic range.

Key Features
· Integrating sphere: standard 50 mm, 100-500 mm optional with baffle
· Full radiometric & colorimetric quantities: radiant/luminous flux, spectral radiant flux, xy and u'v' coordinates, dominant wavelength, color purity, CCT, CRI
· USB powered, mobile, no extra power supply
· Automatic determination of measurement time, Excel export
· Complete radiometric and colorimetric software functions

Applications
Radiant and luminous flux measurement of LEDs and miniature lamps, spectral characterization of light sources, optical evaluation of lamps and displays, quality control and sample selection.
