CO2激光器
型号：400/140
产品简介
尚朴光电提供CO2激光器，输出波长10.6μm，适用于工业加工与科研应用。
产品描述
一、产品概述
尚朴光电提供CO2激光器，输出波长10.6μm，适用于工业加工与科研应用。 CO2 激光器以二氧化碳气体为增益介质，通过气体放电激励输出 9.2–10.8μm 中红外波段激光，具备输出功率高、电光转换效率好、波长可调、寿命长等特点，支持连续与脉冲两种工作模式；结构坚固、运行稳定，广泛用于激光切割、焊接、雕刻等工业加工，以及红外光谱、激光雷达、激光超声检测与高能物理等科研应用。
二、核心参数
· 波长：9.2 - 10.8
三、典型应用
激光切割、焊接与雕刻；医疗手术；红外光谱；激光雷达与测距；激光超声检测；材料加工。
技术参数
| 波长 | 9.2 - 10.8 |
技术数据
| Model | 200/75 | 400/140 | 600/210 | 1000/300 |
| Wavelength (µm) | 9.2 - 10.8 | 9.2 - 10.8 | 9.2 - 10.8 | 9.2 – 10.8 |
| Repetition rate (Hz) | 200 | 400 | 600 | 1000 |
| Pulse energy - Multimode (J) | 0.35 | 0.35 | 0.35 | 0.3 |
| Pulse energy - TEMoo (J) | 0.1 | 0.1 | 0.1 | 0.12 |
| Average output power - Multimode (W) | 70 | 140 | 210 | 300 |
| Average output power - TEMoo (W) | 20 | 40 | 60 | 120 |
| Pulse width - FWHM of initial spike (ns) | 50 - 100 | 50 - 100 | 50 - 100 | 50 – 100 |
| Output stability (1 sigma) | <4% | <4% | <4% | <4% |
| Jitter (1 sigma) | <10ns | <10ns | <10ns | <10ns |
| Beam height - Multimode (mm) | 15 | 15 | 15 | 12 |
| Beam width - Multimode (mm) | 15 | 15 | 15 | 12 |
| Beam Quality factor (M2) - Multimode | 3月6日 | 3月6日 | 3月6日 | 2 – 4 |
| Beam waist - TEMoo (mm) | 5 | 5 | 5 | 4 |
| Beam Quality factor (M2) - TEMoo | 1月2日 | 1月2日 | 1月2日 | 1 – 2 |
| Operating pressure (atm) | 1 | 1 | 1 | 1 |
| Dimensions (L x W x H) | 1.3m x 0.9m x 0.7m | 1.8m x 1.1m x 0.7m | 1.8m x 1.1m x 0.7m | 2.1m x 1.1m x 0.8m |
| Weight - including transformer oil (kg) | 500 | 1300 | 1300 | 1800 |
| Gas load lifetime for closed loop system | >100,000,000 pulses | |||
| Electrical voltage | 208V, 380V 50/60Hz | |||
| Phase | Three phase | |||
| Pulse Circuit | Advanced solid switch technology | |||
| Pre-ionisation | Corona pre-ionised | |||
| Cooling services Temperature stabilised, closed loop chilled water supply with temperature at 18C, with a heat removal capacity of: | ||||
| 5kW | 10kW | 15kW | 15kW | |
| Optional extras | Manual wavelength tuner Side arm catalyst system | |||
| Non-Destructive Testing (NDT) Isotope separation | ||||
| Extreme Ultraviolet (EUV) generation systems THz imaging systems | ||||
| Typical applications | Laser Marking systems | |||

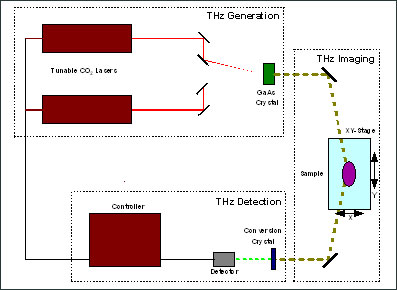

THZ应用原理图
