Kinematic Prism Mounts
Overview
NULL
Description
l Platform mirror mount is oriented vertically and compatible with imperial/metric. l Equipped with leaf spring structure and rigid link structure.
l Adjust actuators using a 1/4-inch-80 knob. l The actuators can be locked by an optional GF-ACE screw.
l The adjuster optics are aligned to the center of the Ø1/2 inch post. l Platform can be Moved to Either Arm for Left- or Right-Handed Configuration.
l Designed for Use with Clamping Arms (Sold Below).
Specifications
| Dimensions | 54*54mm |
| Clearance Holes | M3 (9 p) |
| Angular Range | ±4 ° |
| Actuator Locks | Optional |
| Clearance Holes/Tapped Holes | M4/M6 |
| Optical axis height | 27mm |
| Number of Actuators | 2 |
| Adjustments | θx, θy |
Technical Data

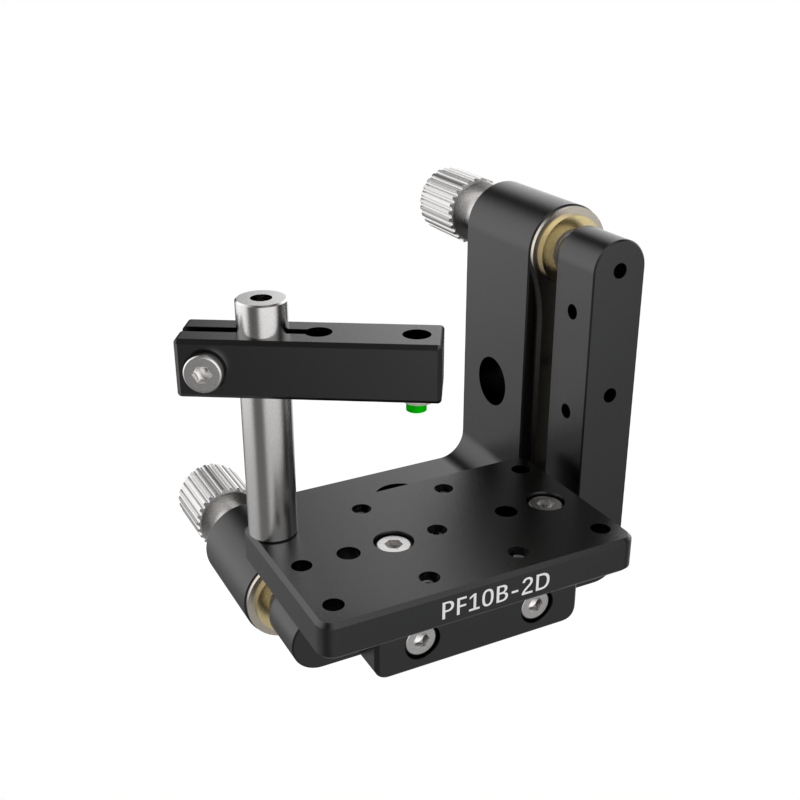

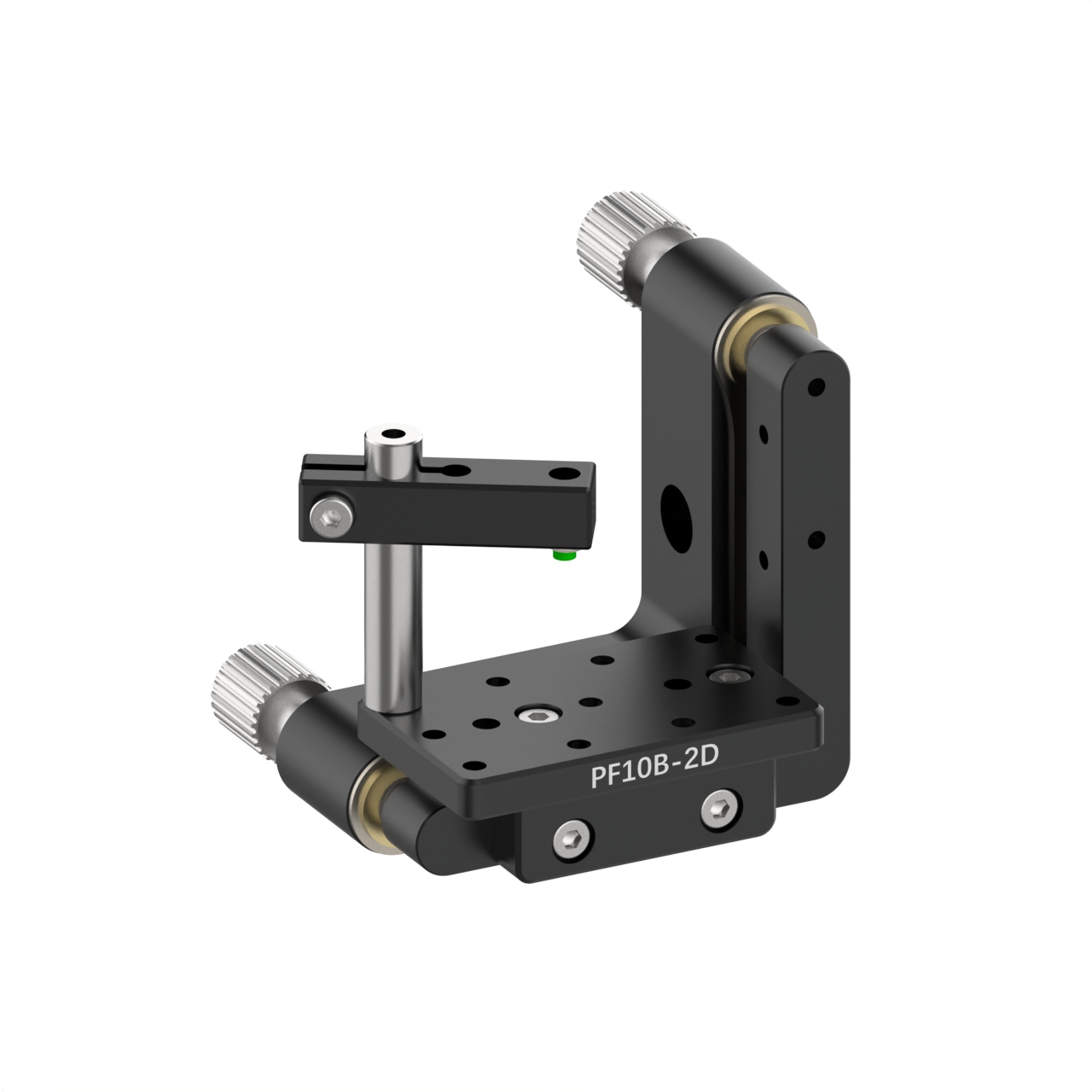

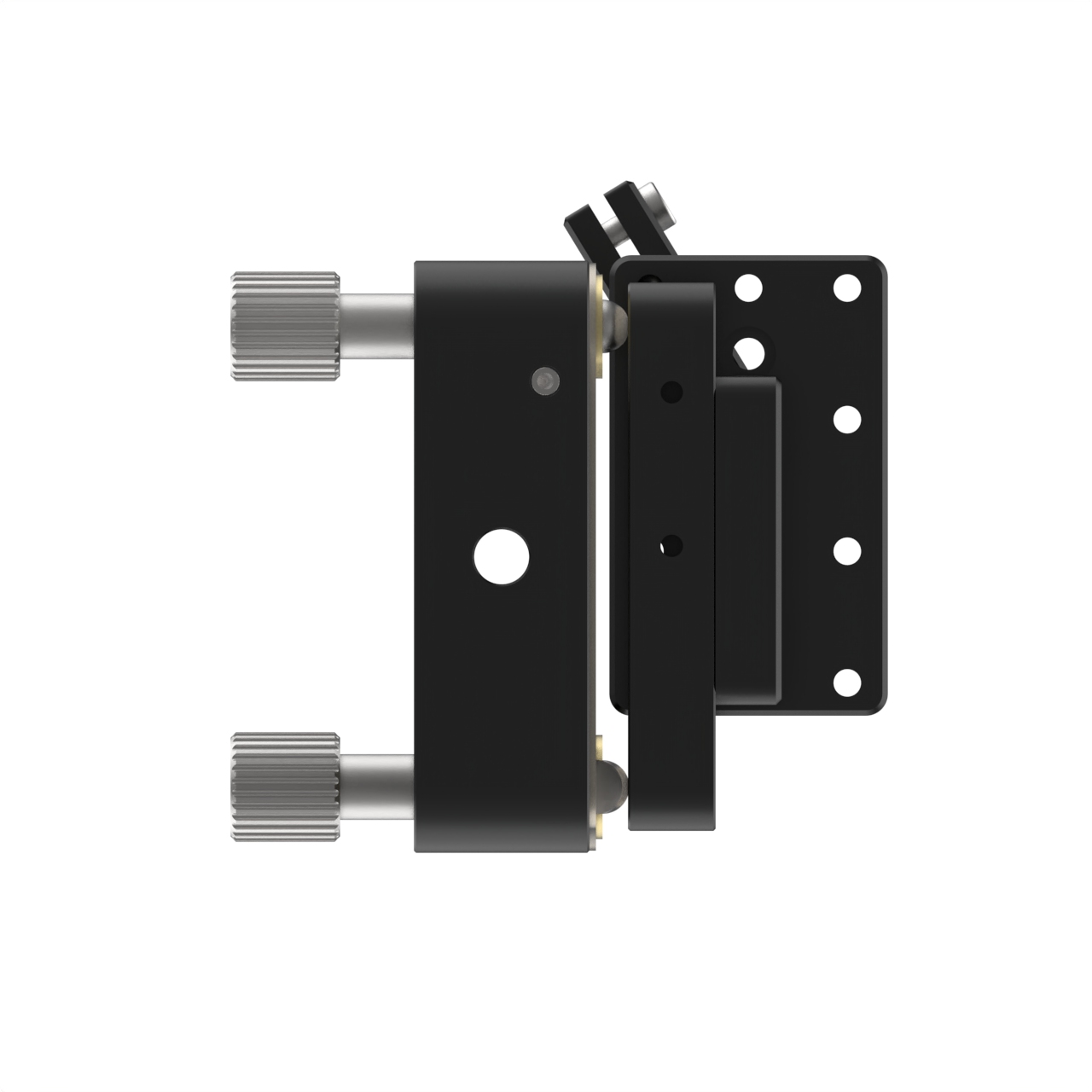

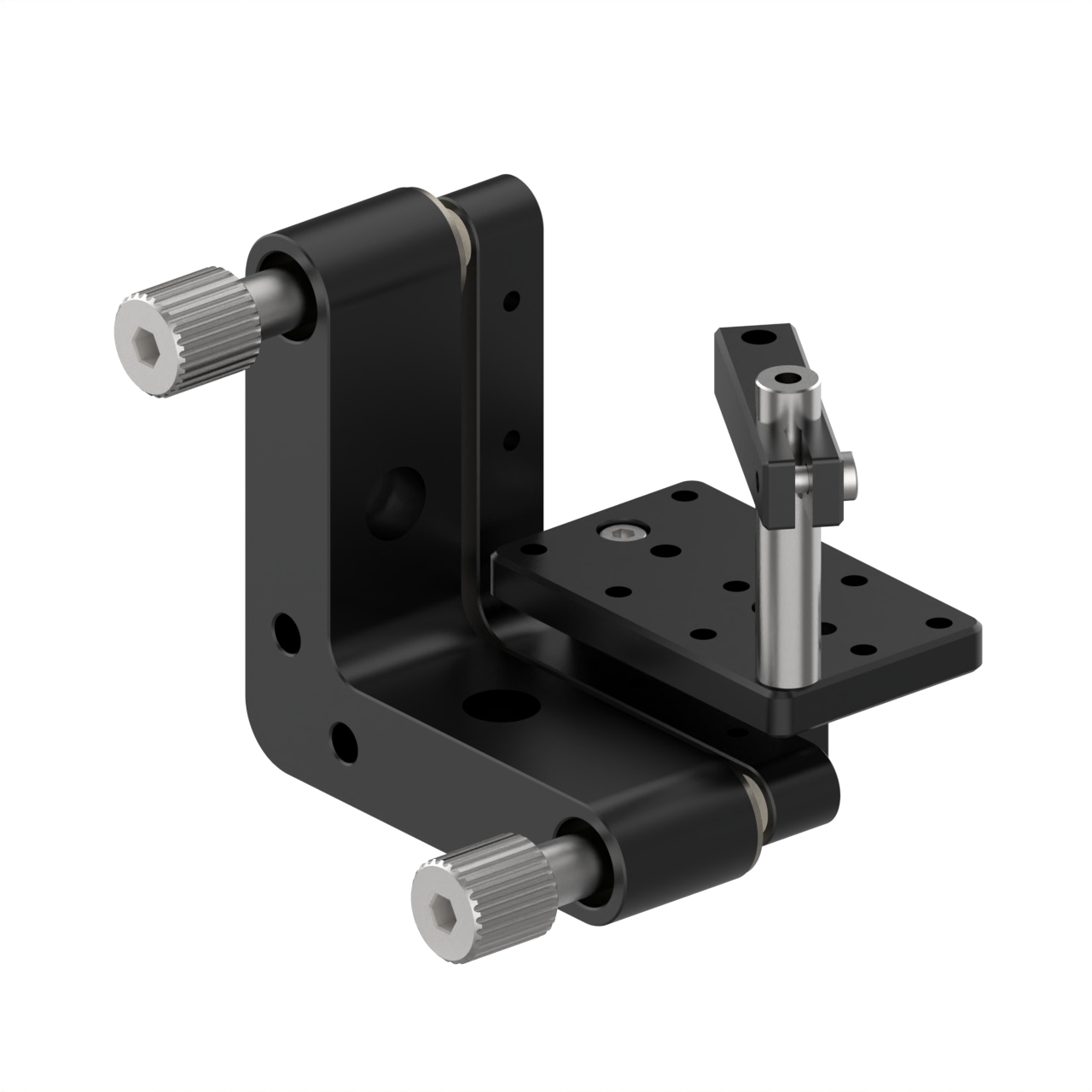

The PF10B-2D is a platform mirror mount that is compatible with imperial/metric. It is equipped with a leaf spring structure (advanced design). The optics are fixed by a top wire with nylon. Adjust actuators aer using a 1/4-inch-80 knob. The actuators can be locked by fittings GF-ACE screw(optional). The dimensions is 2.13 inch x 2.13 inch(54 mm x 54 mm).
