Ultraviolet picosecond laser
Model：GENIUS-150/350
Overview
Product brand: gracelaser; Product application: nonlinear optics; Quantum communication; Single photon counting; Gl-355 series mode-locked picosecond UV laser is continuously pumped by imported laser diode, and stable continuous passive mode locking is realized by semiconductor saturable absorption mirror (SESAM). The unique design of laser cavity realizes the long life of the laser. It can be used in quantum communication, single photon counting, seed laser and other applications.Description
Product brand: gracelaser;
Product application: nonlinear optics; Quantum communication; Single photon counting;
Gl-355 series mode-locked picosecond UV laser is continuously pumped by imported laser diode, and stable continuous passive mode locking is realized by semiconductor saturable absorption mirror (SESAM). The unique design of laser cavity realizes the long life of the laser. It can be used in quantum communication, single photon counting, seed laser and other applications.

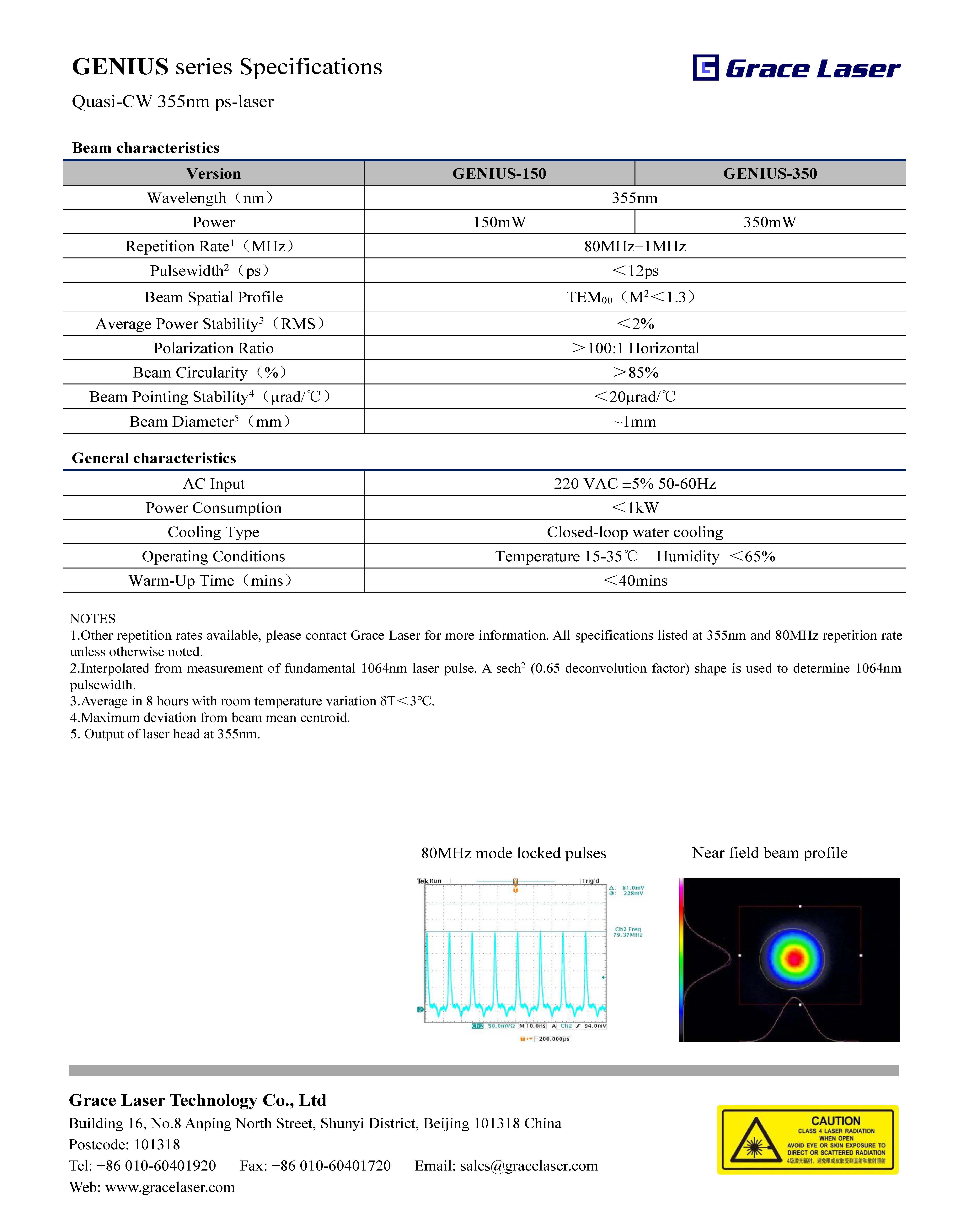

Specifications
| wavelength | 355nm |
| power | 150mW、350mW |
| Repetition frequency | 80MHz |
| Beam quality | M2<1.3;TEM00 |
| Pulse duration | 12ps |
Technical Data
